Drive Pulley - Sheave with Insert for Mowers Using Farmall Belt Pulley Attachment
is on back order

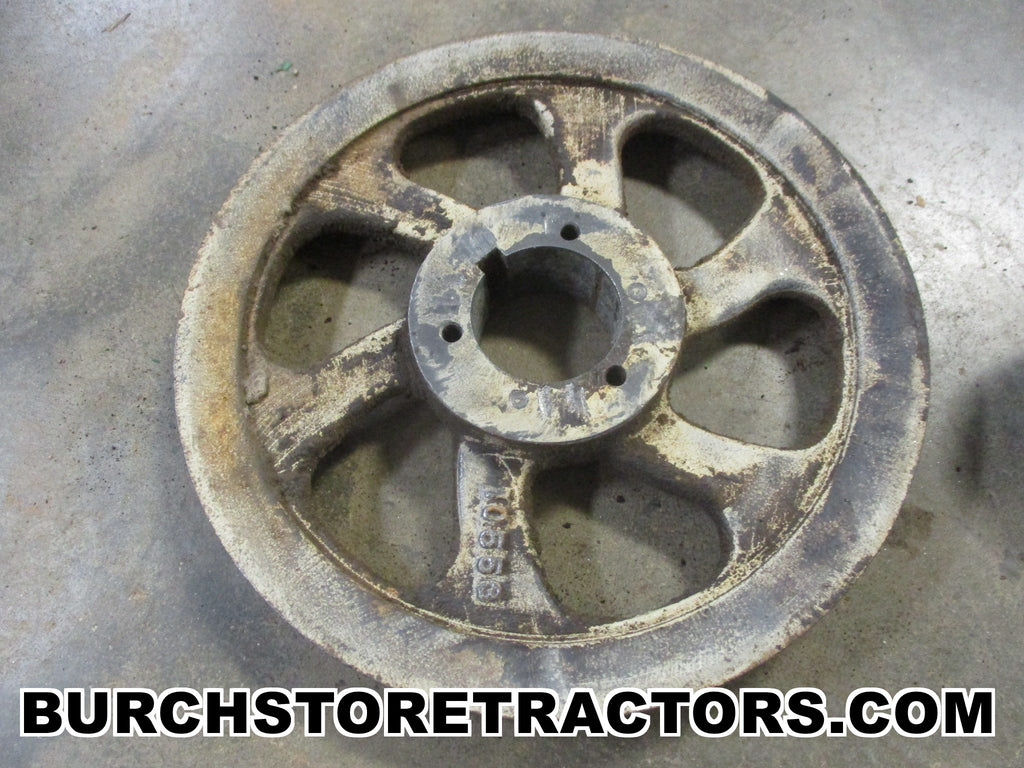

Woods Belly Mower Pulley Complete with 1 1/8 inch diameter, 6 spline insert for IH Farmall 140, 130, 100, Super A, A, B, BN, and Other Tractor Models.
This mower pulley is used on the above tractors with GEARBOX BELT PULLEY ATTACHMENT output shaft to drive the mower.

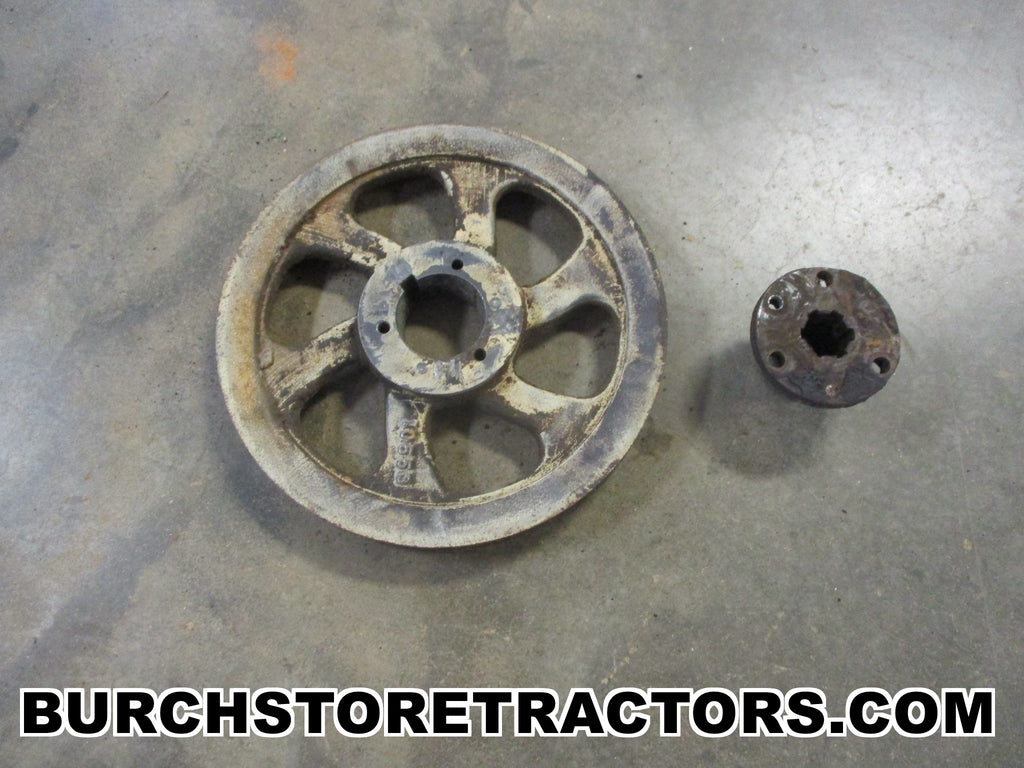

Woods Equipment mower part number 1481 (pulley) and Woods Equipment part number 3651 (1 1/8 inch diameter 6 spline insert for belt drive output shaft).
Pulley diameter is 9 3/4 inches.
Please measure and make sure this is the correct diameter pulley before ordering.

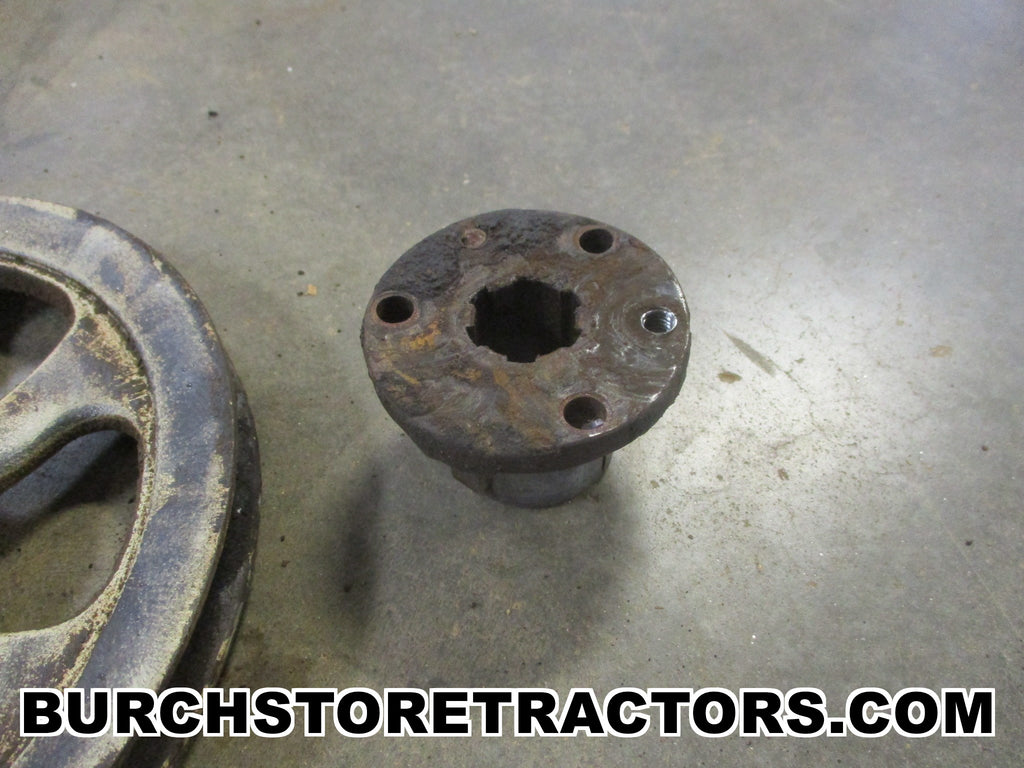

Pulley insert fits 1 1/8 6 spline tractor BELT DRIVE output shaft.
Used on numerous Woods Equipment Products mowers and other brands mowers driven by tractor belt pulley output shafts (1 1/8 inch diameter 6 spline output shafts).
The belt drive output shaft is 1 1/8 inch diameter and 6 spine where as the standard PTO 540 RPM output shaft is 1 3/8 inch diameter and 6 spline. The pulley insert MUST MATCH output shaft diameter and spline count.
