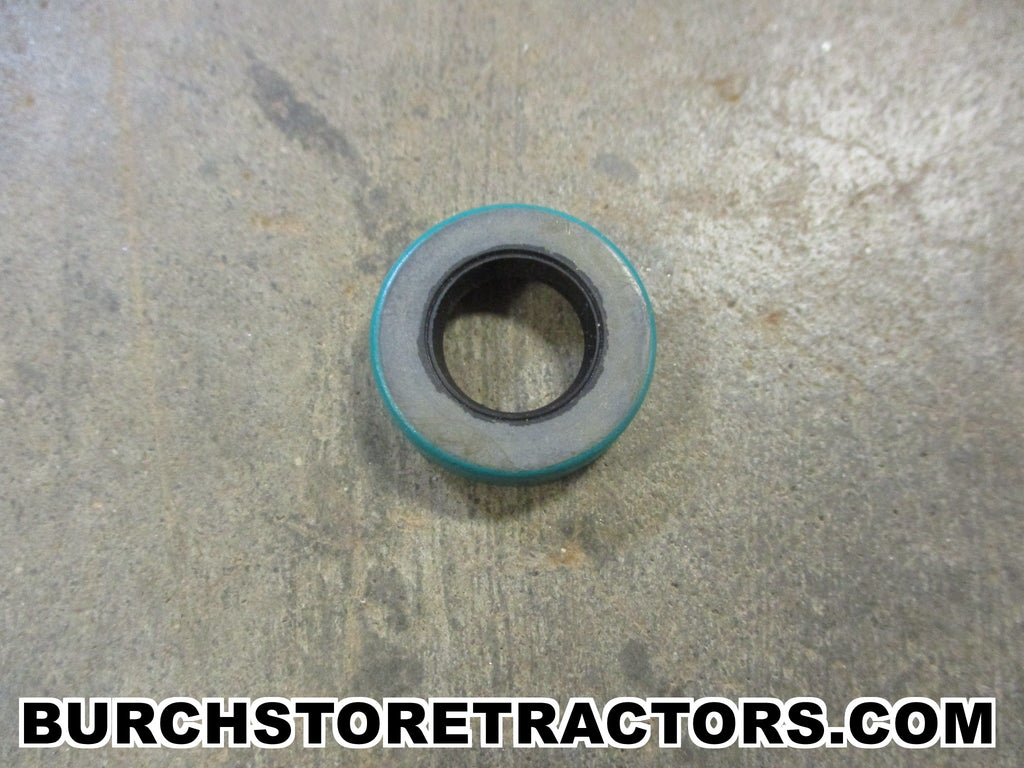

New Seal for Hydraulic Pump for International and IH Farmall 140, 130, Super A, 100, Super A-1, Super AV, Super AV-1, Super C, 200, 230, and 240 Tractor Models.
The outside diameter is 1" inch.
The inside diameter is 9/16" inch.
Replaces Case IH seal part numbers: 384504R94, 596548R91, 71131019, 80063285, H548511, H582916, H141861, H569400, H89540, V4017.
PLEASE MEASURE YOUR SEAL BEFORE ORDERING, INTERNATIONAL HARVESTER USED SEVERAL DIFFERENT SEAL SIZES BASED ON BRAND OF PUMP USED!!!
ALL Farmall Tractor Hydraulic related parts
Please note the above listed tractors are commonly found to have aftermarket and hydraulic pumps not specifically listed in the parts catalog for your tractor installed. This usually is due to pump swap outs in past repair actions.
The typical symptom of this seal failing is the hydraulic fluid will leak from the drive shaft pump and into the engine crankcase. This will result in low level of hydraulic fluid without any obvious sign of external leakage. In more severe leaking of this seal will show up as a unexplained increase in engine oil level. This is due to the hydraulic fluid mixing with the engine oil.
