16 Cell Melon and Cucumber Metal Seed Plate for International Harvester and McCormick Planter - Seed Hoppers for International and IH Farmall 140,  130,  Super A,  100,  Cub,  and Other Tractor Models.

Seed Plate for use with Combination (with corn and bean bottom) and Richmond Seed Hoppers.

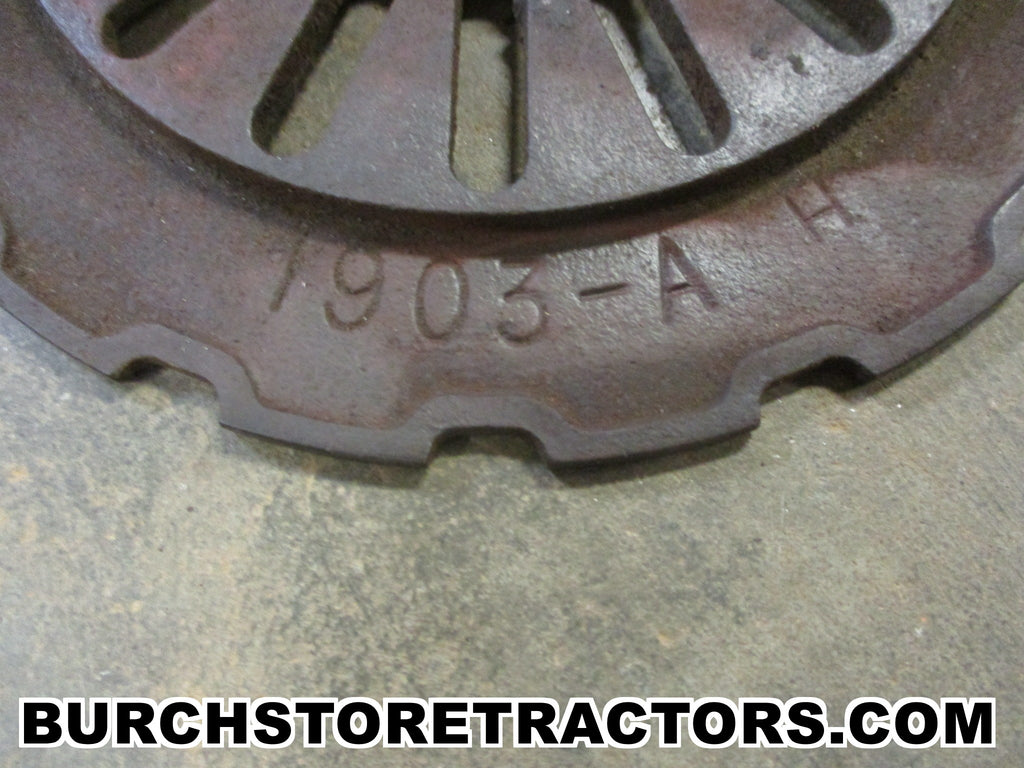

Case IH Seed Plate part number 1903A.

Cell dimensions are 5/16" inch X 5/8" inch X 5/16" inch.

This seed plate requires a filler ring since it is a thin plate due to the thickness of the seed.  This plate requires a 1902AB filler ring.

Outside diameter of seed plate is 7-5/8" inches.

Seed plate is also for use with International Harvester McCormick 56, 66,  184,  186,  284, and many other planters and belly mount planters models when equipped with the IH Combination seed hopper option.

Please compare your current seed plates to the pictures or parts catalogs since most IHC planters had multiple seed hopper options.

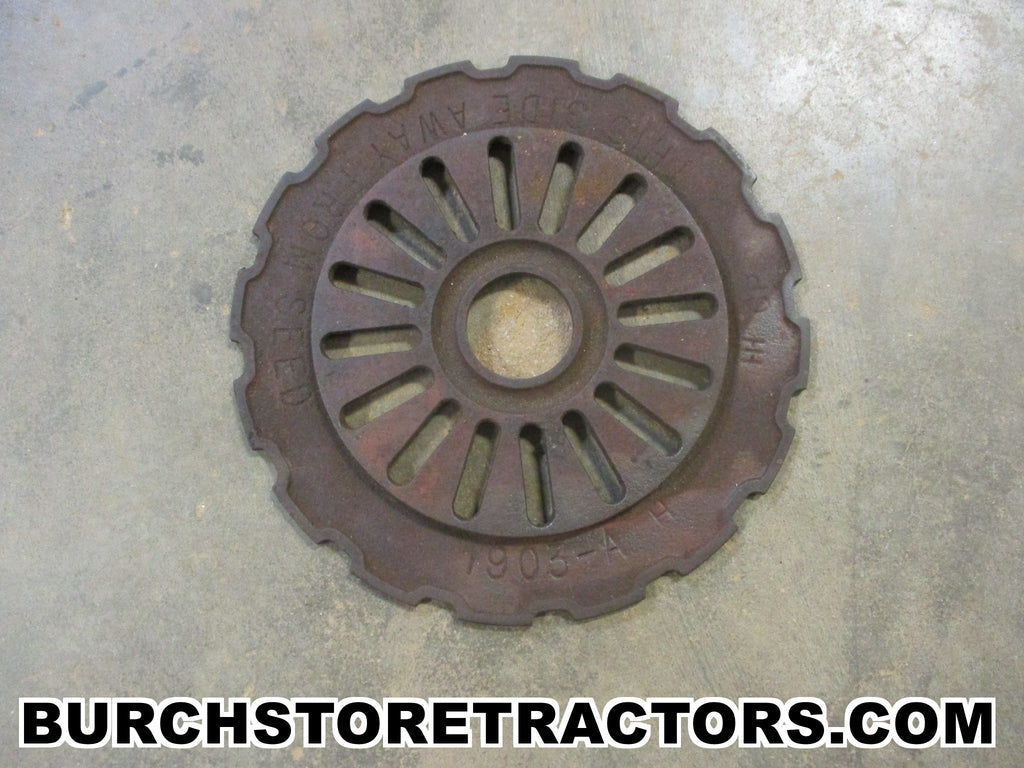

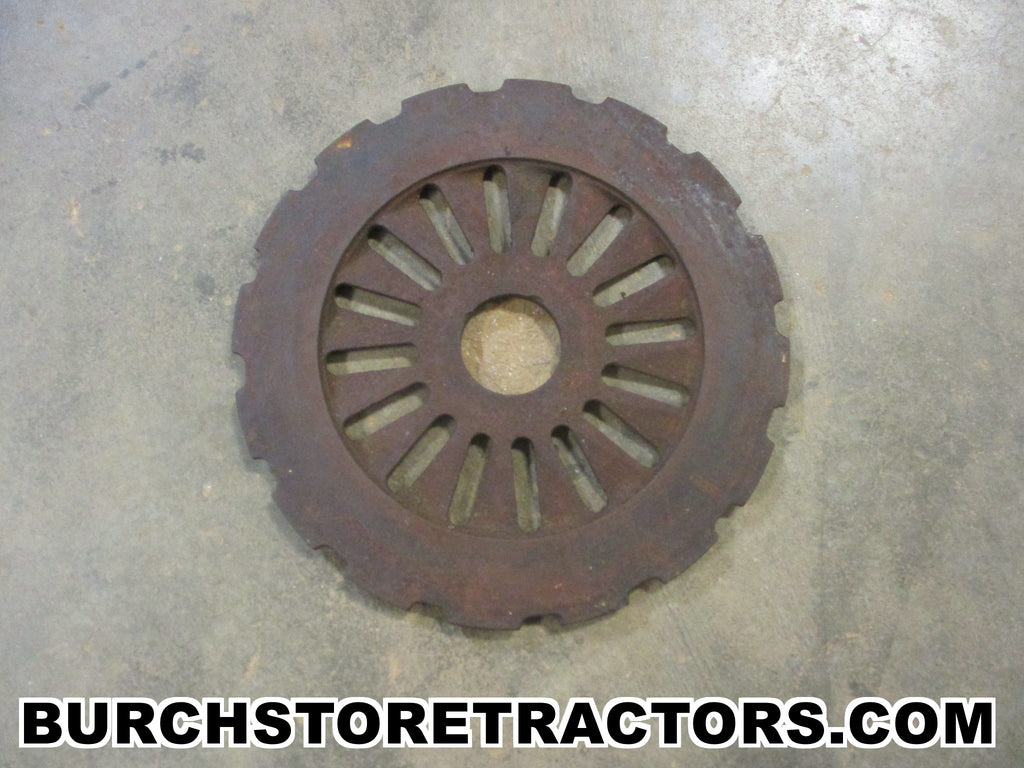

The last two photos show the type of hopper the seed plate will fit.

FREE SHIPPING ON ALL SEED PLATES!!!
