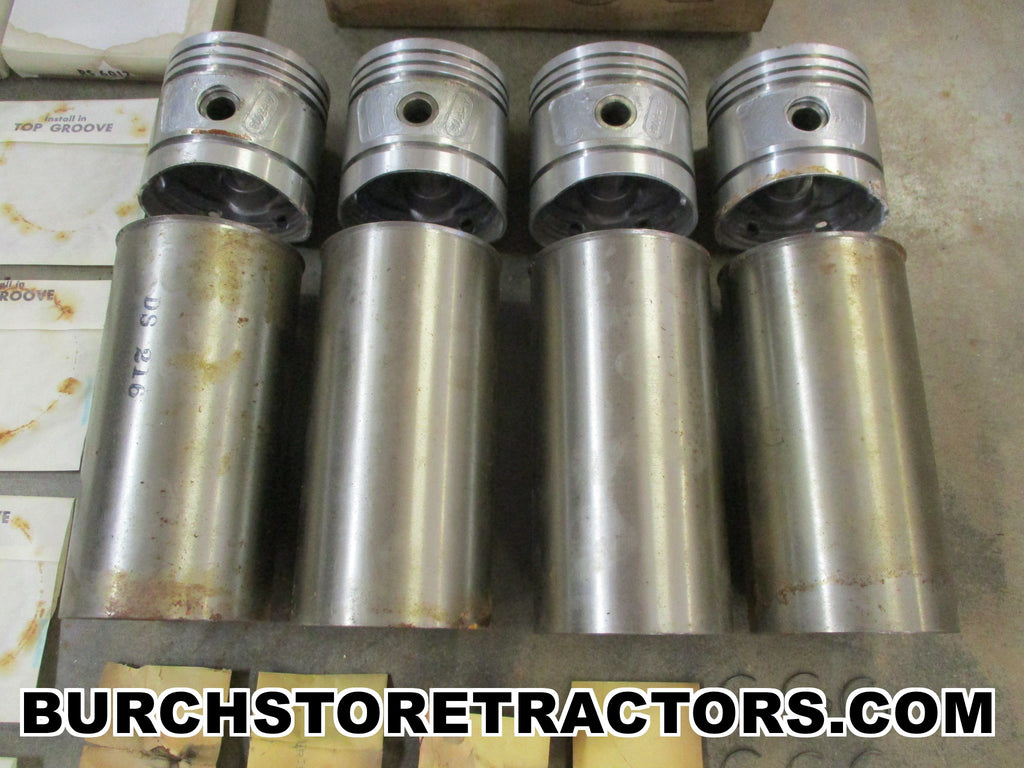

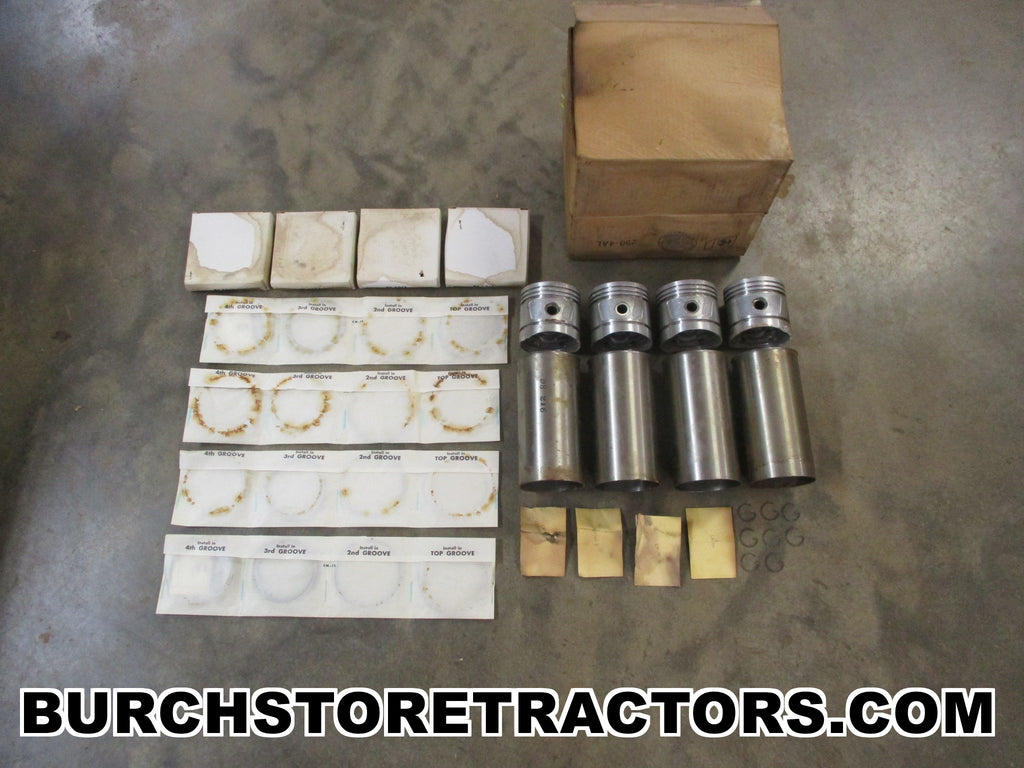

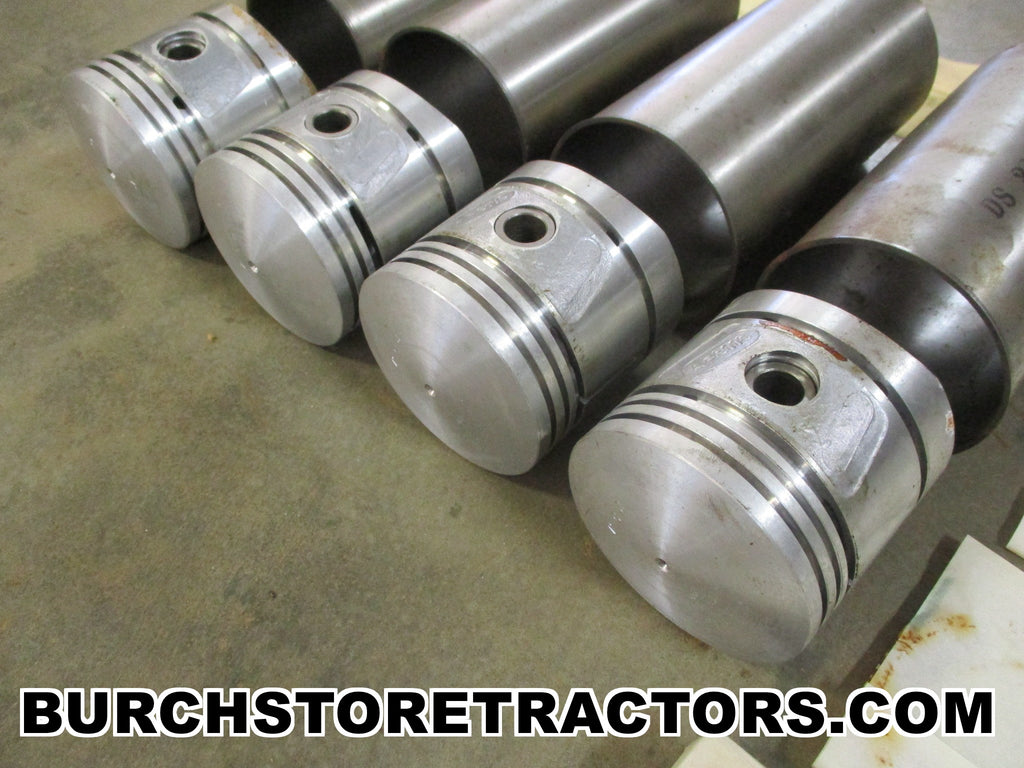

New Old Stock Engine Sleeve and Piston Kit for Ford 9N,  2N  and 8N Tractors.

Will ONLY fit tractors with .040 thick wall sleeves.

This is a standard bore kit which has 3-3/16" inch bore.

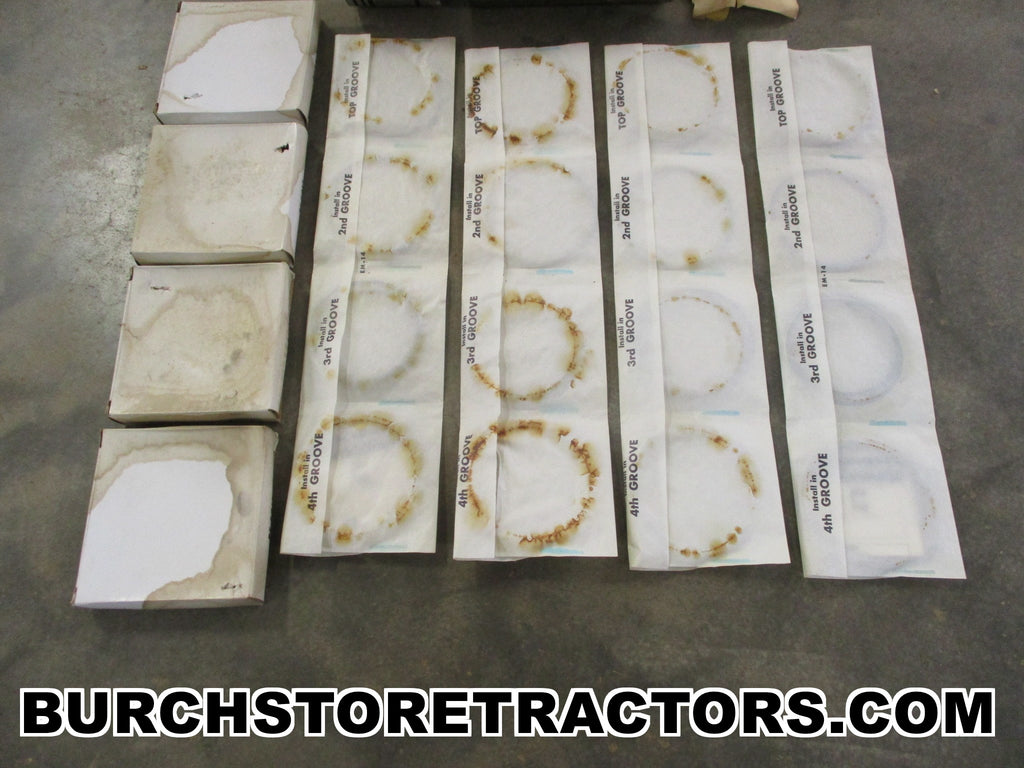

The (2) compression rings are 3/32" inch thick for each piston.

The (2) oil ring is 5/32" inch thick for each piston.

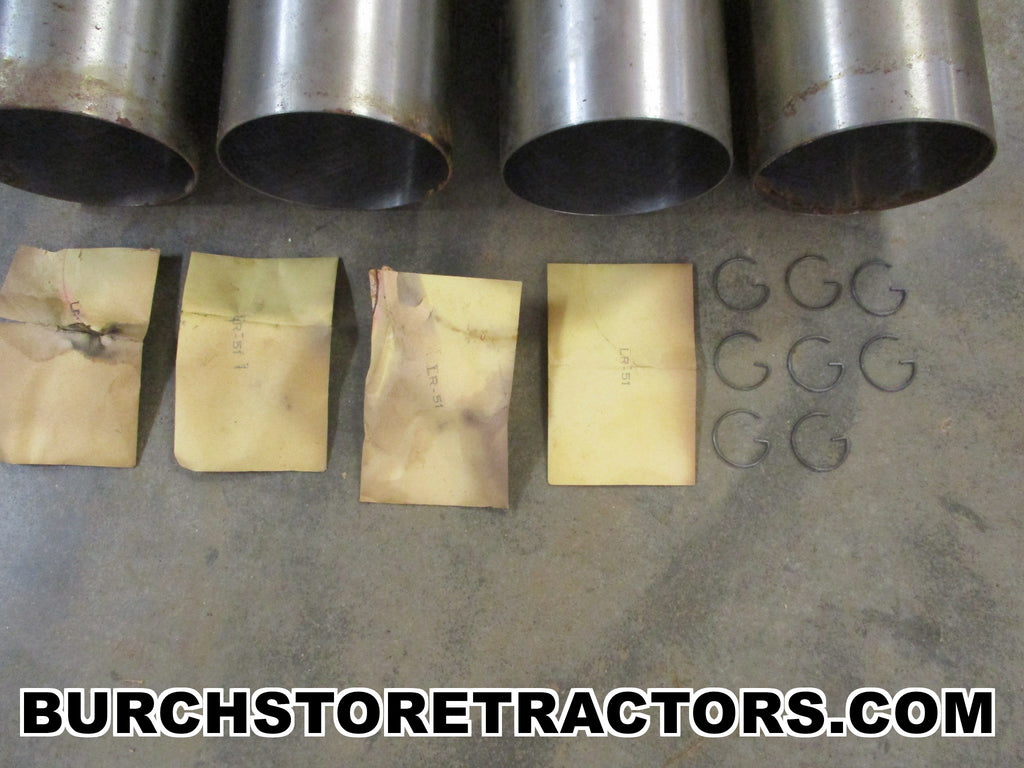

Wrist pins and clips are included for each piston.

This engine and sleeve kit was produced by Gould Engine Parts Division.  These kits are new old stock from a dealership liquidation.  They were produced in the 1970's.

We would recommend careful inspection and cleaning the kits before installation due to age.

Ford and aftermarket part numbers: G-216CH,  G216CH,  19A6135A,  81859187,  86531518,  8N6108A,  8N6108B,  9N6149A,  C0NN6055B,  FP561.

Please carefully verify your engine's piston bore diameter and sleeve thickness to ensure you order the correct kit.
